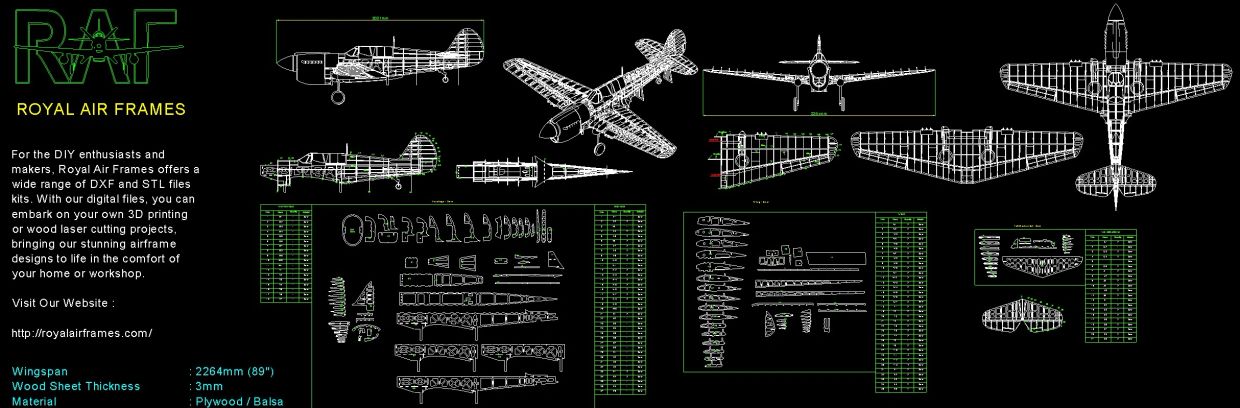

Curtiss P-40N Warhawk 2264mm (90") - DXF Plans Laser FilES

Build the iconic Curtiss P-40N Warhawk as a large-scale 90" RC model with accurate proportions and a practical structure. The airframe is designed mainly around 3mm plywood with interlocking parts for easy and reliable assembly. Wing and fuselage jigs are included to help keep the airframe straight and accurately aligned during construction.

✅ 2264mm (90") Wingspan - 1/5 Scale

✅ Designed for 50cc-Class Gasoline Engines

✅ Accurate Scale P-40N Design

✅ 3mm Plywood Construction

✅ DXF/DWG Laser Cutting Files

✅ Full-Size PDF Construction Plans

✅ STL Files for 3D Printed Scale Parts

✅ 3D Printed Cowl, Canopy, Antenna & Scale Details

✅ Wing & Fuselage Assembly Jigs Included

✅ Easy, Strong & Practical Construction

✅ Detailed 3D Renders Included

✅ Designed for JP Hobby ER-120 90° (F4u) Rotating Retracts

The package includes DXF/DWG laser cutting files, full-size PDF plans, STL files, and detailed 3D renders for reference. 3D-printable parts include the cowl, canopy, antenna, and other scale details. The model is designed for 50cc-class gasoline engines. The landing gear setup is prepared for JP Hobby 90° rotating retracts commonly used for the F4U Corsair. Other retract systems can also be used with suitable modifications.

🎁 Download FREE sample plans from our website and check the design quality before starting your build.
