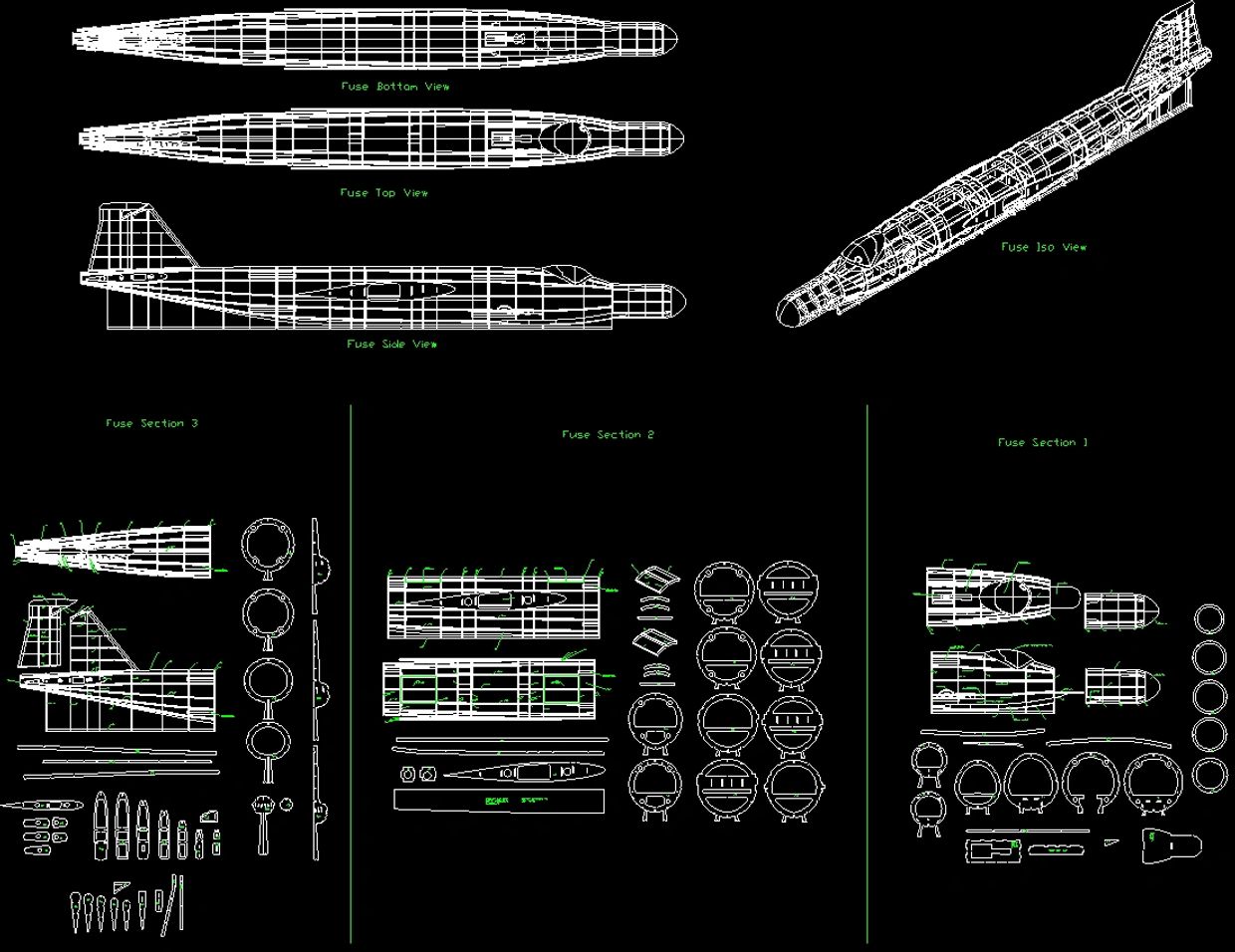

1/6 English Electric Canberra - DXF Plans and CAD files
Experience the thrill of flying a Cold War icon with our 1/6 scale English Electric Canberra RC model — designed for serious builders and advanced RC pilots. With a 3.25-meter wingspan, this twin-turbine jet blends aerodynamic performance, scale accuracy, and smart construction
✅ Key Features:
- Scale: 1/6
- Wingspan: 3.25 meters (128")
- Power System: Twin 100N-class turbines
- Construction: Laser-cut plywood & balsa, fully sheeted wings
- Digital Package Includes:
- DXF files (for laser cutting)
- STL files (for 3D-printed parts)
- PDF plans (for layout & reference
- Modular Design: Removable wings and 3-part fuselage.
✈️ Available Variants:
- WT333 – Research version
- B.2 – Standard bomber
- PR.9 – Photo reconnaissance
- T.17 – Radar trainer
- Martin B-57 – U.S. variant
- Other versions available on request
📐 Aircraft Data:
- Wing Root Airfoil: NACA 64012
- Tip Airfoil: NACA 64010
- Root Incidence Angle: 2°
- Washout: -1.5°
- Thrust Line Angle: 2°
- Tail Airfoil: NACA 0012
- Horizontal Stabilizer Angle: 1° incidence
🎁 What’s Included:
- Full digital plan package: DXF + STL + PDF
- Choice of variant with customized parts
- Builder support (email & chat)
- Licensing available for kit production or resale
📌 Follow the Project:
Stay up to date and watch the build evolve👉 Follow the Design Thread :https://www.rcscalebuilder.com/forum/forum_posts.asp?TID=37545
