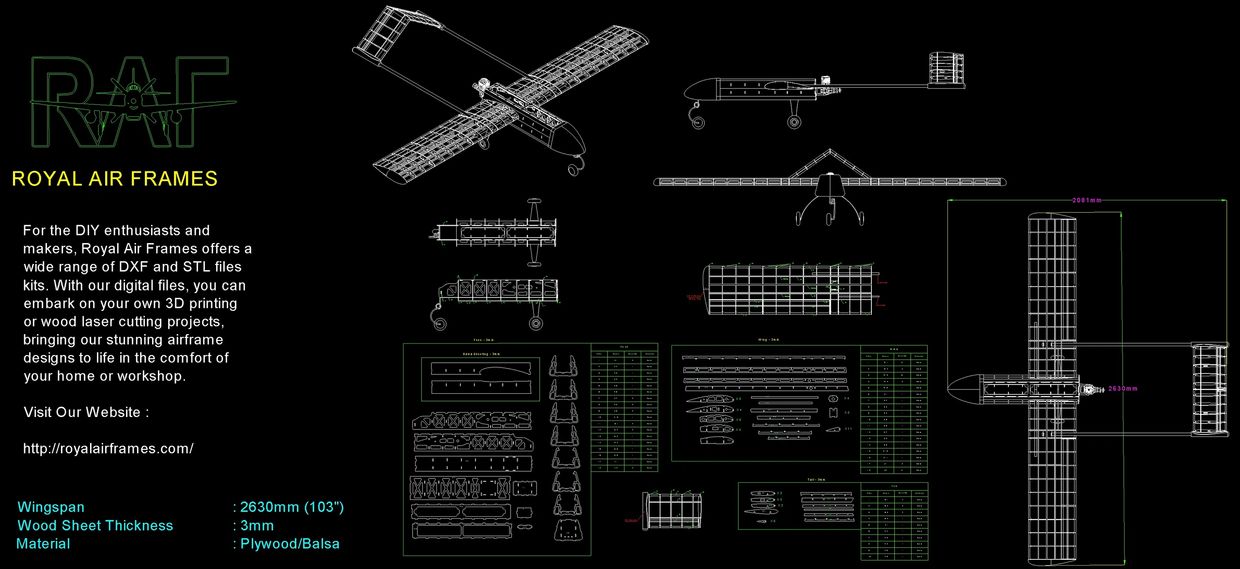

RQ-7 Shadow Scale RC UAV 2630mm(103") - DXF Plans

 The RQ-7 Shadow is a widely used tactical UAV by military forces around the world, known for reconnaissance, surveillance, and target acquisition. Its clean design, endurance, and reliability make it an ideal scale model for UAV testing and demonstration purposes.

🔹 Key Features:

✔️ Complete DXF files for laser-cut plywood & balsa – precise, repeatable construction
✔️ STL files for 3D-printed scale parts
✔️ 3D-printed items: nose section + optional wing tips
✔️ Fully sheeted wings and tail – strong, rigid, and smooth aerodynamic surfaces
✔️ Simplified plywood structure – optimized for durability and lightweight strength
✔️ Designed for DLE 35 gas engine – suitable for functional flying prototypes

📐 Specifications:

• Wingspan: 2630 mm (103")
• Construction: Laser-cut plywood & balsa + 3D-printed scale parts
• Power: DLE 35
